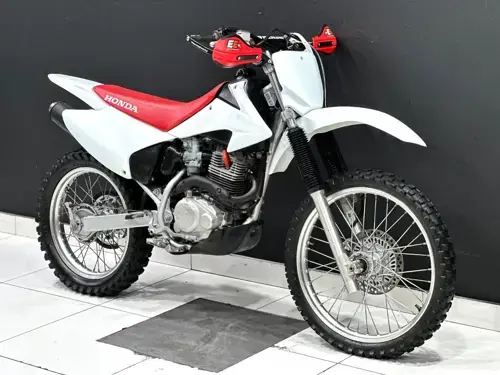

Honda CRF230F 2011 motorcycle info

Main Detail

Make

Honda

Model

CRF230F

Year

2011

Dimensions and Weight

Ground Clearance

297 mm / 11.7 inches

Overall Width

1,016 mm / 40.0 inches

Trail

112 mm / 4.4 inches

Kerb Weight

112.9 kg / 249.0 pounds

Wheelbase

1,374 mm / 54.1 inches

Engine and Exhaust

Bore / Stroke

65.5 x 66.2 mm / 2.6 x 2.6 inches

Engine Capacity

223.00 cc / 13.61 cubic inches

Compression

9.0:1

Engine Type

Single cylinder, four-stroke

Ignition

CDI

Starter

Electric & kick

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet, multiplate

Drive line

#520 O-ring-sealed chain; 13T/50T

Fuel and Emission Standards

Fuel System

Carburettor. 26mm piston-valve carburator

Fuel Control

SOHC

Fuel Capacity

7.19 litres / 1.90 gallons

Emission Details

Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.

Suspension

Front Suspension

37mm leading-axle Showa fork

Front Suspension Travel

241 mm / 9.5 inches

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

Pro-Link Showa single-shock with spring-preload adjustability

Rear Wheel Travel

229 mm / 9.0 inches

Tires and Rims

Front Tire Dimensions

80/100-21

Rear Tire Dimensions

100/100-18

Brakes

Front Brakes

Single disc

Front Brake Diameter

240 mm / 9.4 inches

Rear Brakes

Expanding brake (drum brake)

Notes, Comments and Warranty Information

Modifications from Previous Model

Also called USHighland 507 ATX QuadRacer.

Colour Options

Red
