Honda CRF110F 2017 specifications pictures and more for the 2017 Honda CRF110F in South Africa brought to you by Motomedia

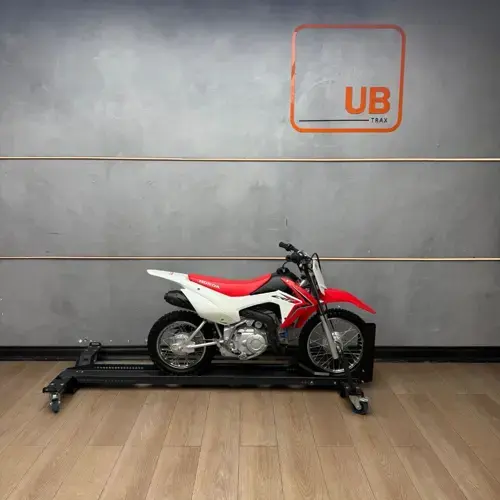

Honda CRF110F 2017 motorcycle info

Main Detail

Make

Honda

Model

CRF110F

Year

2017

Performance and Speed

Torque

8.85 Nm (0.9 kgf-m or 6.5 ft.lbs) @ 3500 Revolutions">RPM

Dimensions and Weight

Ground Clearance

175 mm / 6.9 inches

Overall Height

912 mm / 35.9 inches

Overall Length

1,560 mm / 61.4 inches

Overall Width

668 mm / 26.3 inches

Trail

53 mm / 2.1 inches

Kerb Weight

73.9 kg / 163.0 pounds

Wheelbase

1,064 mm / 41.9 inches

Engine and Exhaust

Bore / Stroke

50.0 x 55.6 mm / 2.0 x 2.2 inches

Compression

9.0:1

Engine Type

Single cylinder, four-stroke

Ignition

CDI

Starter

Electric & kick

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

4-speed

Clutch

Automatic

Fuel and Emission Standards

Fuel System

Carburettor. 13mm piston-valve carburetor

Fuel Control

Single Overhead Cams (SOHC)

Fuel Capacity

4.16 litres / 1.10 gallons

Reserve Fuel Capacity

1.00 litres / 0.26 gallons

Emission Details

Meets current California Air Resource Board (CARB) and EPA off-road emissions standards.

Suspension

Front Suspension

31.0mm telescopic fork

Front Wheel Travel

99 mm / 3.9 inches

Rear Suspension

Single-shock

Rear Wheel Travel

86 mm / 3.4 inches

Tires and Rims

Front Tire

70/100-14

Rear Tire

80/100-12

Brakes

Front Brakes

Expanding brake (drum brake)

Front Brake Diameter

109 mm / 4.3 inches

Rear Brakes

Expanding brake (drum brake)

Rear Brake Diameter

109 mm / 4.3 inches

Notes, Comments and Warranty Information

Comments

Model ID: CRF110F

Factory Warranty

Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.

Colour Options

Red

Honda CRF110F 2017 specs
