Honda CBR600RR ABS 2010 specifications pictures and more for the 2010 Honda CBR600RR ABS in South Africa brought to you by Motomedia

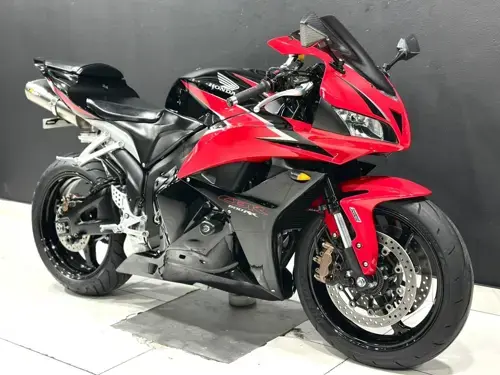

Honda CBR600RR ABS 2010 motorcycle info

Main Detail

Make

Honda

Model

CBR600RR ABS

Year

2010

Dimensions and Weight

Trail

98 mm / 3.8 inches

Kerb Weight

196.0 kg / 432.0 pounds

Wheelbase

1,369 mm / 53.9 inches

Engine and Exhaust

Bore / Stroke

67.0 x 42.5 mm / 2.6 x 1.7 inches

Engine Capacity

599.00 cc / 36.55 cubic inches

Compression

12.2:1

Engine Type

In-line four, four-stroke

Ignition

Computer-controlled digital transistorized with three-dimensional mapping

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Fuel and Emission Standards

Fuel System

Injection. Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors

Fuel Control

DOHC

Fuel Consumption

5.73 litres/100 km (17.5 km/l or 41.05 mpg)

Fuel Capacity

18.16 litres / 4.80 gallons

Greenhouse Gases

132.9 CO

Suspension

Front Suspension

41mm inverted HMAS cartridge fork with spring-preload, rebound and compression damping adjustability

Front Suspension Travel

119 mm / 4.7 inches

Front Wheel Travel

119 mm / 4.7 inches

Rear Suspension

Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability

Rear Wheel Travel

130 mm / 5.1 inches

Tires and Rims

Front Tire Dimensions

120/70-ZR17

Rear Tire Dimensions

180/55-ZR17

Brakes

Front Brakes

Double disc. Dual radial-mounted four-piston calipers with 310mm discs; Honda Combined ABS

Front Brake Diameter

310 mm / 12.2 inches

Rear Brakes

Single disc. Single 220mm disc; Honda Combined ABS

Rear Brake Diameter

220 mm / 8.7 inches

Notes, Comments and Warranty Information

Colour Options

Red/Black

Honda CBR600RR ABS 2010 specs
