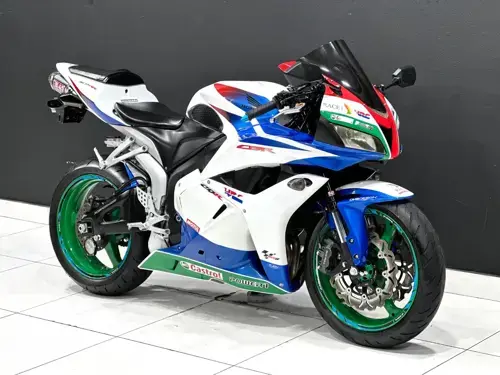

Honda CBR600RR 2009 specifications pictures and more for the 2009 Honda CBR600RR in South Africa brought to you by Motomedia

Honda CBR600RR 2009 motorcycle info

Main Detail

Make

Honda

Model

CBR600RR

Year

2009

Dimensions and Weight

Trail

98 mm / 3.8 inches

Kerb Weight

186.0 kg / 410.0 pounds

Wheelbase

1,369 mm / 53.9 inches

Engine and Exhaust

Bore / Stroke

67.0 x 42.5 mm / 2.6 x 1.7 inches

Engine Capacity

599.00 cc / 36.55 cubic inches

Compression

12.2:1

Engine Type

In-line four

Ignition

Computer-controlled digital transistorized with three-dimensional mapping

Starter

Electric

2 / 4 Stroke

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Fuel and Emission Standards

Fuel System

Injection. Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors

Fuel Control

DOHC

Fuel Capacity

18.16 litres / 4.80 gallons

Suspension

Front Suspension

41mm inverted HMAS cartridge fork with spring-preload, rebound and compression damping adjustability

Front Suspension Travel

119 mm / 4.7 inches

Front Wheel Travel

119 mm / 4.7 inches

Rear Suspension

Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability

Rear Wheel Travel

130 mm / 5.1 inches

Tires and Rims

Front Tire Dimensions

120/70-ZR17

Rear Tire Dimensions

180/55-ZR17

Brakes

Front Brakes

Double disc

Front Brake Diameter

310 mm / 12.2 inches

Rear Brakes

Single disc

Rear Brake Diameter

220 mm / 8.7 inches

Notes, Comments and Warranty Information

Colour Options

Red/Black, Black/Bright Green Metallic, Metallic Black, Phoenix, (Pearl White/Pearl Blue/Red - limited edition)
