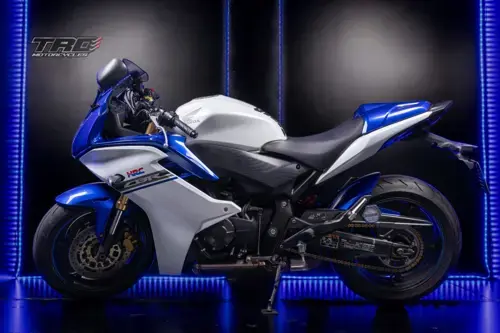

Honda CBR600F 2011 specifications pictures and more for the 2011 Honda CBR600F in South Africa brought to you by Motomedia

Honda CBR600F 2011 motorcycle info

Main Detail

Make

Honda

Model

CBR600F

Year

2011

Performance and Speed

Torque

64.00 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 10500

Dimensions and Weight

Ground Clearance

135 mm / 5.3 inches

Overall Height

1,150 mm / 45.3 inches

Overall Length

2,150 mm / 84.6 inches

Overall Width

740 mm / 29.1 inches

Trail

99 mm / 3.9 inches

Kerb Weight

198.0 kg / 436.5 pounds

Wheelbase

1,245 mm / 49.0 inches

Engine and Exhaust

Bore / Stroke

67.0 x 0.0 mm / 2.6 x inches

Engine Capacity

600.00 cc / 36.61 cubic inches

Compression

12.0:1

Engine Type

In-line four, four-stroke

Ignition

Digital CDI

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet, multiple discs, cable operated

Lubrication System

Wet sump

Fuel and Emission Standards

Fuel System

Injection

Fuel Control

DOHC

Fuel Capacity

19.00 litres / 5.02 gallons

Reserve Fuel Capacity

4.00 litres / 1.06 gallons

Suspension

Front Suspension

Cartridge fork

Front Suspension Travel

120 mm / 4.7 inches

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

Single shock, swingarm

Rear Wheel Travel

46 mm / 1.8 inches

Tires and Rims

Front Tire Dimensions

120/70-ZR17

Rear Tire Dimensions

180/55-ZR17

Brakes

Front Brakes

Double disc. Optional ABS

Front Brake Diameter

296 mm / 11.7 inches

Rear Brakes

Single disc. Optional ABS

Rear Brake Diameter

240 mm / 9.4 inches

Instrumentation and Lighting

Lighting

12V; 60/55W low and high headlights

Notes, Comments and Warranty Information

Modifications from Previous Model

Also called USHighland 507 ATX QuadRacer.

Colour Options

Black/yellow

Honda CBR600F 2011 specs
