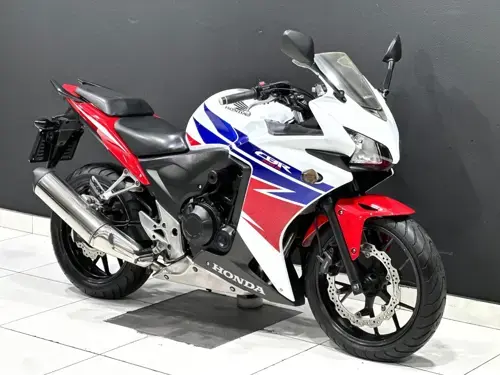

Honda CBR500R 2014 specifications pictures and more for the 2014 Honda CBR500R in South Africa brought to you by Motomedia

Honda CBR500R 2014 motorcycle info

Main Detail

Make

Honda

Model

CBR500R

Year

2014

Performance and Speed

Torque

37.00 Nm (3.8 kgf-m or 27.3 ft.lbs) @ 7500 Revolutions">RPM

Dimensions and Weight

Ground Clearance

140 mm / 5.5 inches

Overall Height

1,165 mm / 45.9 inches

Overall Length

2,075 mm / 81.7 inches

Overall Width

740 mm / 29.1 inches

Trail

103 mm / 4.1 inches

Kerb Weight

192.8 kg / 425.0 pounds

Wheelbase

1,410 mm / 55.5 inches

Engine and Exhaust

Bore / Stroke

67.0 x 66.8 mm / 2.6 x 2.6 inches

Engine Capacity

471.00 cc / 28.74 cubic inches

Compression

10.7:1

Engine Type

In-line four, four-stroke

Ignition

Computer-controlled digital transistorized with electronic advance

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet multiplate with coil springs

Drive line

O-ring-sealed chain

Lubrication System

Forced pressure and wet sump

Fuel and Emission Standards

Fuel System

Injection. PGM-FI with 34mm throttle bodies

Fuel Control

DOHC

Fuel Consumption

2.52 litres/100 km (39.7 km/l or 93.34 mpg)

Fuel Capacity

15.52 litres / 4.10 gallons

Emission Details

Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.

Greenhouse Gases

58.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

41mm fork

Front Suspension Travel

122 mm / 4.8 inches

Front Wheel Travel

118 mm / 4.7 inches

Rear Suspension

Pro-Link single shock with nine-position spring preload adjustability

Rear Wheel Travel

103 mm / 4.1 inches

Tires and Rims

Front Tire

110/70-17

Front Tire Dimensions

120/70-17

Rear Tire

140/70-17

Rear Tire Dimensions

160/60-17

Brakes

Front Brakes

Double disc. Wave disc. Two-piston calipers.

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc. Wave disc. Single-piston caliper.

Rear Brake Diameter

240 mm / 9.4 inches

Notes, Comments and Warranty Information

Comments

Model ID: CBR500R

Factory Warranty

One year. Unlimited milage. Transferable.

Colour Options

Black, Pearl White/Blue/Red, Red
