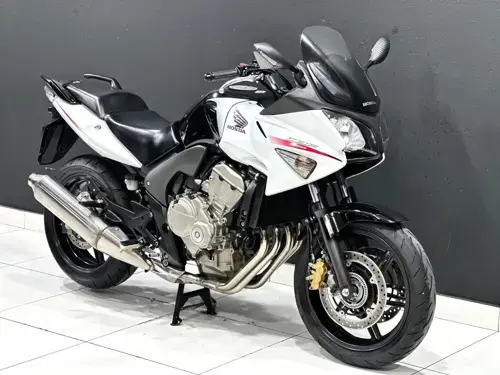

Honda CBF600S 2011 specifications pictures and more for the 2011 Honda CBF600S in South Africa brought to you by Motomedia

Honda CBF600S 2011 motorcycle info

Main Detail

Make

Honda

Model

CBF600S

Year

2011

Performance and Speed

Power to Weight Ratio

0.3506 HP/kg

Torque

59.00 Nm (6.0 kgf-m or 43.5 ft.lbs) @ 8250

Dimensions and Weight

Dry Weight

218.0 kg / 480.6 pounds

Ground Clearance

130 mm / 5.1 inches

Overall Height

1,240 mm / 48.8 inches

Overall Length

2,160 mm / 85.0 inches

Overall Width

765 mm / 30.1 inches

Wheelbase

1,490 mm / 58.7 inches

Engine and Exhaust

Bore / Stroke

67.0 x 42.5 mm / 2.6 x 1.7 inches

Engine Capacity

599.30 cc / 36.57 cubic inches

Compression

11.6:1

Engine Type

In-line four, four-stroke

Ignition

Computer-controlled digital transistorised with electronic advance

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet, multiplate

Drive line

O-ring Sealed chain

Fuel and Emission Standards

Fuel System

Injection

Fuel Control

DOHC

Fuel Capacity

20.00 litres / 5.28 gallons

Reserve Fuel Capacity

4.00 litres / 1.06 gallons

Suspension

Front Suspension

41mm telescopic fork, 120mm axle travel

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

Monoshock damper with 7-step adjustable preload, 125mm axle travel

Tires and Rims

Front Tire Dimensions

120/70-ZR17

Rear Tire Dimensions

160/60-ZR17

Rims

U-section twin 6-spoke cast aluminium

Brakes

Front Brakes

Double disc

Front Brake Diameter

296 mm / 11.7 inches

Rear Brakes

Single disc

Rear Brake Diameter

240 mm / 9.4 inches

Notes, Comments and Warranty Information

Modifications from Previous Model

Also called USHighland 507 ATX QuadRacer.

Colour Options

Black, red/black, white/black, gold/black

Honda CBF600S 2011 specs
