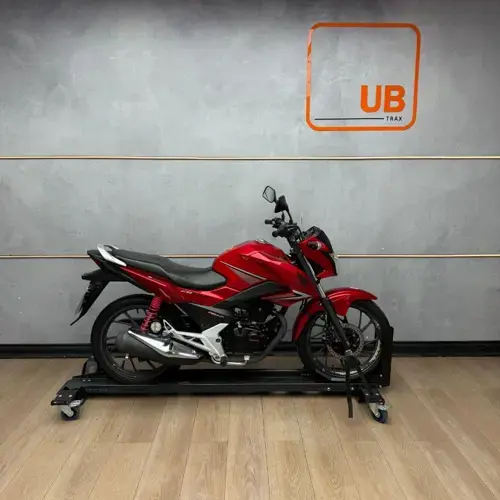

Honda CB125F 2015 specifications pictures and more for the 2015 Honda CB125F in South Africa brought to you by Motomedia

Honda CB125F 2015 motorcycle info

Main Detail

Make

Honda

Model

CB125F

Year

2015

Performance and Speed

Torque

10.12 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 6250 Revolutions">RPM

Dimensions and Weight

Overall Height

1,080 mm / 42.5 inches

Overall Length

2,035 mm / 80.1 inches

Overall Width

765 mm / 30.1 inches

Kerb Weight

128.0 kg / 282.2 pounds

Wheelbase

1,295 mm / 51.0 inches

Engine and Exhaust

Bore / Stroke

52.4 x 57.9 mm / 2.1 x 2.3 inches

Engine Capacity

124.80 cc / 7.62 cubic inches

Compression

9.2:1

Engine Detail

Balancer shaft

Engine Type

Single cylinder, four-stroke

Ignition

DC-CDI

Starter

Electric & kick

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

4-speed

Oil Capacity

1.00 litres / 0.07 quarts

Fuel and Emission Standards

Fuel System

Carburettor

Fuel Control

Overhead Cams (OHC)

Fuel Capacity

10.00 litres / 2.64 gallons

Reserve Fuel Capacity

2.50 litres / 0.66 gallons

Suspension

Front Suspension

Telescopic fork

Front Wheel Travel

118 mm / 4.6 inches

Rear Suspension

Dual rear shocks with 5-step spring preload adjustment

Rear Wheel Travel

70 mm / 2.8 inches

Tires and Rims

Front Tire

80/100-18

Rear Tire

90/90-18

Rims

Spoke cast aluminium

Brakes

Front Brakes

Single disc. Dual piston

Front Brake Diameter

240 mm / 9.4 inches

Rear Brakes

Expanding brake (drum brake)

Rear Brake Diameter

130 mm / 5.1 inches

Notes, Comments and Warranty Information

Colour Options

Yellow

Honda CB125F 2015 specs
