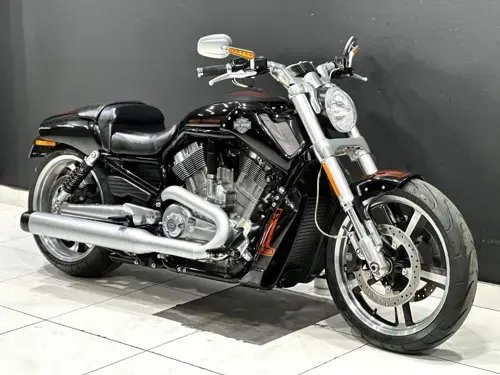

Harley-Davidson V-Rod Muscle 2015 motorcycle info

Main Detail

Make

Harley-Davidson

Model

V-Rod Muscle

Year

2015

Performance and Speed

Power to Weight Ratio

0.4086 HP/kg

Torque

116.62 Nm (11.9 kgf-m or 86.0 ft.lbs) @ 6500 Revolutions">RPM

Dimensions and Weight

Dry Weight

292.1 kg / 644.0 pounds

Ground Clearance

122 mm / 4.8 inches

Overall Length

2,357 mm / 92.8 inches

Trail

142 mm / 5.6 inches

Kerb Weight

307.1 kg / 677.0 pounds

Wheelbase

1,702 mm / 67.0 inches

Engine and Exhaust

Bore / Stroke

105.0 x 72.0 mm / 4.1 x 2.8 inches

Compression

11.5:1

Engine Detail

Liquid-cooled, Revolution®, 60° V-Twin

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Satin chrome, dual side exhaust system with turnouts

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Gear, 117/64 ratio primary drive

Lubrication System

Dry sump

Oil Capacity

4.70 litres / 0.31 quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Consumption

6.30 litres/100 km (15.9 km/l or 37.34 mpg)

Fuel Capacity

18.93 litres / 5.00 gallons

Greenhouse Gases

146.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Tires and Rims

Front Tire

120/70-ZR19

Rear Tire

240/40-R18

Rims

Black, 5-Spoke Cast Aluminum

Brakes

Front Brakes

Double disc. ABS. 4-piston

Rear Brakes

Single disc. 2-piston

Instrumentation and Lighting

Instruments

Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings

Notes, Comments and Warranty Information

Colour Options

Black Quartz, Mysterious Red Sunglo, Sand Cammo Denim, Vivid Black
