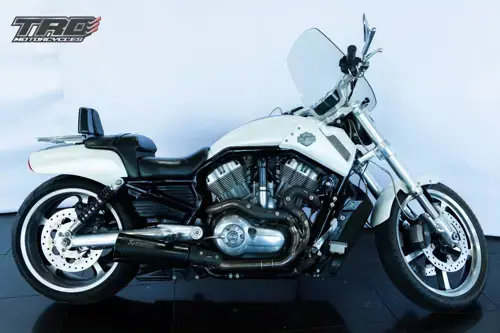

Harley-Davidson V-Rod Muscle 2013 specifications pictures and more for the 2013 Harley-Davidson V-Rod Muscle in South Africa brought to you by Motomedia

Harley-Davidson V-Rod Muscle 2013 motorcycle info

Main Detail

Make

Harley-Davidson

Model

V-Rod Muscle

Year

2013

Performance and Speed

Top Speed

45.0 km/h / 28.0 mph

Torque

117.97 Nm (12.0 kgf-m or 87.0 ft.lbs) @ 6750

Dimensions and Weight

Dry Weight

292.1 kg / 644.0 pounds

Ground Clearance

122 mm / 4.8 inches

Overall Height

1,400 mm / 55.1 inches

Overall Length

2,357 mm / 92.8 inches

Overall Width

1,600 mm / 63.0 inches

Trail

142 mm / 5.6 inches

Kerb Weight

307.1 kg / 677.0 pounds

Wheelbase

1,702 mm / 67.0 inches

Engine and Exhaust

Bore / Stroke

105.0 x 72.0 mm / 4.1 x 2.8 inches

Engine Capacity

1250.08 cc / 76.28 cubic inches

Compression

11.5:1

Engine Detail

Liquid-cooled, Revolution®, 60° V-Twin

Engine Type

V2, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

Satin chrome, dual side exhaust system with turnouts

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Gear, 117/64 ratio primary drive

Lubrication System

Dry sump

Oil Capacity

4.70 litres / 0.31 quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

6.36 litres/100 km (15.7 km/l or 36.98 mpg)

Fuel Capacity

18.93 litres / 5.00 gallons

Greenhouse Gases

147.6 CO

Suspension

Front Suspension

Independent coil springs and hydraulic dampers

Rear Suspension

Independent coil springs and hydraulic dampers

Tires and Rims

Front Tire Dimensions

MT90-ZR19

Rear Tire Dimensions

MU85-R18

Rims

Black, 5-Spoke Cast Aluminum

Brakes

Front Brakes

Single disc. 4-piston

Rear Brakes

Single disc. 2-piston

Instrumentation and Lighting

Instruments

Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings

Notes, Comments and Warranty Information

Comments

Amphibian.

Colour Options

White Hot Denim, Vivid Black, Candy Orange, Midnight Pearl/Brilliant Silver Pearl

Harley-Davidson V-Rod Muscle 2013 specs
