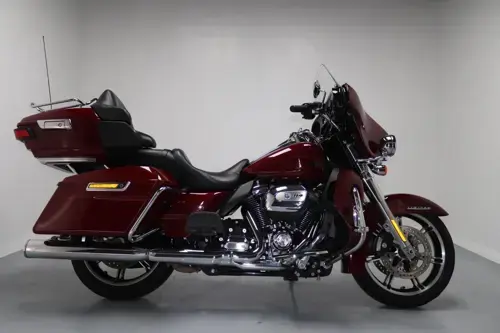

Harley-Davidson Ultra Limited 2020 specifications pictures and more for the 2020 Harley-Davidson Ultra Limited in South Africa brought to you by Motomedia

Harley-Davidson Ultra Limited 2020 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Ultra Limited

Year

2020

Performance and Speed

Power to Weight Ratio

0.2513 HP/kg

Torque

165.4 Nm (16.9 kgf-m or 122.0 ft.lbs) @ 3000 Revolutions">RPM

Dimensions and Weight

Dry Weight

398.0 kg / 877.4 pounds

Ground Clearance

135 mm / 5.3 inches

Overall Length

2600 mm / 102.4 inches

Trail

170 mm / 6.7 inches

Kerb Weight

413.0 kg / 910.5 pounds

Wheelbase

1625 mm / 64.0 inches

Engine and Exhaust

Bore / Stroke

102.0 x 114.0 mm / 4.0 x 4.5 inches

Engine Capacity

1868.0 cc / 113.99 cubic inches

Compression

10.5:1

Engine Detail

Twin-Cooled™ Milwaukee-Eight® 114 engine

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome, 2-1-2 dual exhaust with tapered mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Belt (final drive)

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Chain, 34/46 ratio primary drive

Lubrication System

Dry sump

Oil Capacity

4.70 litres / 4.97 US quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection (ESPFI)

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.47 litres/100 km (18.3 km/l or 43.00 mpg)

Fuel Capacity

22.71 litres / 6.00 US gallons

Greenhouse Gases

126.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Carrying Capacity

Saddle bags, top box

Tires and Rims

Front Tire

130/70-B18

Rims

Slicer II cast aluminum with clear coat

Brakes

Front Brakes

Double disc. ABS. 4-piston

Rear Brakes

Single disc. ABS. 4-piston

Instrumentation and Lighting

Instruments

Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators

Lighting

High beam, running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS

Notes, Comments and Warranty Information

Comments

Windshield. Infotainment. USB. Bluetooth.

Colour Options

Vivid Black, Barracuda Silver, River Rock Gray/Vivid Black, Midnight Blue/Barracuda Silver, Silver Pine/Spruce, Stiletto Red, Tahitian Teal, Vivid Black (with Black Finish), River Rock Gray (with Black Finish), Barracuda Silver Denim/Black Denim (with Bla
