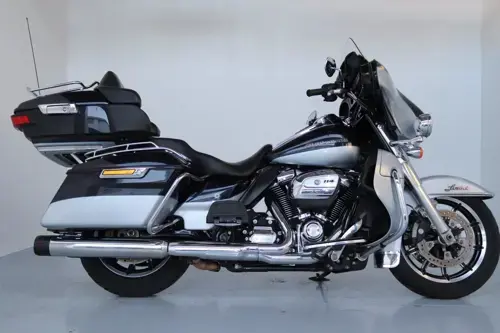

Harley-Davidson Ultra Limited 2018 specifications pictures and more for the 2018 Harley-Davidson Ultra Limited in South Africa brought to you by Motomedia

Harley-Davidson Ultra Limited 2018 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Ultra Limited

Year

2018

Performance and Speed

Power to Weight Ratio

0.2261 HP/kg

Torque

153.00 Nm (15.6 kgf-m or 112.9 ft.lbs) @ 3250 Revolutions">RPM

Dimensions and Weight

Dry Weight

398.0 kg / 877.4 pounds

Ground Clearance

135 mm / 5.3 inches

Overall Length

2,600 mm / 102.4 inches

Trail

170 mm / 6.7 inches

Kerb Weight

413.0 kg / 910.5 pounds

Wheelbase

1,625 mm / 64.0 inches

Engine and Exhaust

Bore / Stroke

100.0 x 111.1 mm / 3.9 x 4.4 inches

Compression

10.0:1

Engine Detail

Twin-Cooled? Milwaukee-Eight? 107

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome, 2-1-2 dual exhaust with tapered mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Chain, 34/46 ratio primary drive

Lubrication System

Dry sump

Oil Capacity

4.70 litres / 0.31 quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection (ESPFI)

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

6.10 litres/100 km (16.4 km/l or 38.56 mpg)

Fuel Capacity

22.71 litres / 6.00 gallons

Greenhouse Gases

141.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Carrying Capacity

Saddle bags, top box

Tires and Rims

Front Tire

130/80-B17

Rear Tire

180/65-B16

Rims

Contrast Chrome Impeller Cast Aluminum

Brakes

Front Brakes

Double disc. ABS. 4-piston

Rear Brakes

Single disc. ABS. 4-piston

Instrumentation and Lighting

Instruments

Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators

Lighting

High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory,?security system, 6-speed, low fuel warning, ABS

Notes, Comments and Warranty Information

Comments

Windshield. Infotainment. USB. Bluetooth.

Colour Options

Vivid Black, Twisted Cherry, Silver Fortune/Black Tempest, Silver Fortune/Sumatra Brown, Olive Gold/Black Tempest, Wicked Red/Twisted Cherry, Legend Blue/Vivid Black
