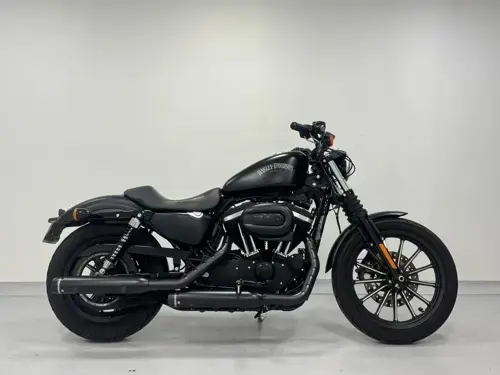

Harley-Davidson Sportster Iron 883 2015 specifications pictures and more for the 2015 Harley-Davidson Sportster Iron 883 in South Africa brought to you by Motomedia

Harley-Davidson Sportster Iron 883 2015 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Sportster Iron 883

Year

2015

Performance and Speed

Power to Weight Ratio

0.2084 HP/kg

Torque

72.95 Nm (7.4 kgf-m or 53.8 ft.lbs) @ 3750 Revolutions">RPM

Dimensions and Weight

Dry Weight

251.0 kg / 553.3 pounds

Ground Clearance

100 mm / 3.9 inches

Overall Length

2,179 mm / 85.8 inches

Trail

117 mm / 4.6 inches

Kerb Weight

260.0 kg / 573.2 pounds

Wheelbase

1,519 mm / 59.8 inches

Engine and Exhaust

Bore / Stroke

76.2 x 96.8 mm / 3.0 x 3.8 inches

Compression

8.9:1

Engine Detail

Air-cooled, Evolution®

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome, staggered shorty exhaust with dual mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Lubrication System

Dry sump

Oil Capacity

2.60 litres / 0.17 quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection (ESPFI)

Fuel Consumption

4.61 litres/100 km (21.7 km/l or 51.02 mpg)

Fuel Capacity

12.49 litres / 3.30 gallons

Greenhouse Gases

107.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Tires and Rims

Front Tire

100/90-B19

Rear Tire

150/80-B16

Rims

Black, 13-Spoke Cast Aluminum

Brakes

Front Brakes

Single disc. Optional ABS

Front Brake Diameter

300 mm / 11.8 inches

Rear Brakes

Single disc

Rear Brake Diameter

300 mm / 11.8 inches

Instrumentation and Lighting

Instruments

Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)

Notes, Comments and Warranty Information

Colour Options

Hard Candy Quicksilver Flake, Sand Cammo Denim, Black Denim, Brilliant Silver Pearl

Harley-Davidson Sportster Iron 883 2015 specs
