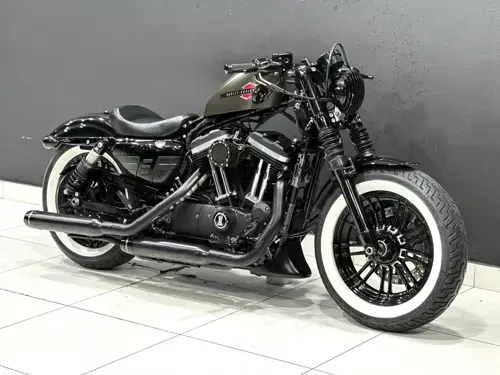

Harley-Davidson Sportster Forty-Eight 2020 specifications pictures and more for the 2020 Harley-Davidson Sportster Forty-Eight in South Africa brought to you by Motomedia

Harley-Davidson Sportster Forty-Eight 2020 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Sportster Forty-Eight

Year

2020

Performance and Speed

Power to Weight Ratio

0.2632 HP/kg

Torque

99.0 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 3500 Revolutions">RPM

Dimensions and Weight

Dry Weight

247.0 kg / 544.5 pounds

Ground Clearance

110 mm / 4.3 inches

Overall Length

2164 mm / 85.2 inches

Trail

135 mm / 5.3 inches

Kerb Weight

252.0 kg / 555.6 pounds

Wheelbase

1495 mm / 58.9 inches

Engine and Exhaust

Bore / Stroke

88.9 x 96.8 mm / 3.5 x 3.8 inches

Engine Capacity

1202.0 cc / 73.35 cubic inches

Compression

10.0:1

Engine Detail

Evolution® engine

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Black, staggered exhaust with slash-cut mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Belt (final drive)

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

57/38 ratio

Lubrication System

Dry sump

Oil Capacity

2.80 litres / 2.96 US quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

4.90 litres/100 km (20.4 km/l or 48.00 mpg)

Fuel Capacity

7.90 litres / 2.09 US gallons

Greenhouse Gases

113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Tires and Rims

Front Tire

130/90-B16

Rims

Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights

Brakes

Front Brakes

Single disc. Dual-piston. Optional ABS.

Rear Brakes

Single disc. Single-piston. Optional ABS.

Instrumentation and Lighting

Instruments

Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)

Notes, Comments and Warranty Information

Colour Options

Vivid Black, Performance Orange, Stone Washed White Pearl, River Rock Grey Denim, Stiletto Red

Harley-Davidson Sportster Forty-Eight 2020 specs
