Harley-Davidson Sport Glide 2020 specifications pictures and more for the 2020 Harley-Davidson Sport Glide in South Africa brought to you by Motomedia

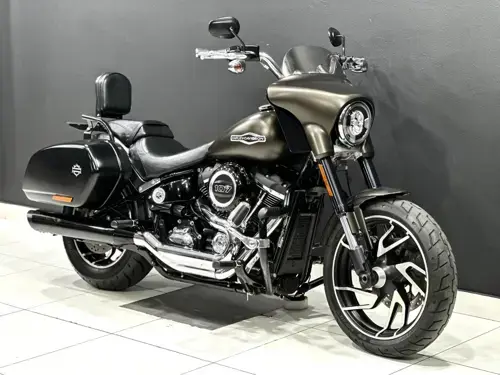

Harley-Davidson Sport Glide 2020 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Sport Glide

Year

2020

Performance and Speed

Idle Speed

850 RPM

Power to Weight Ratio

0.2829 HP/kg

Torque

145.0 Nm (14.8 kgf-m or 107.0 ft.lbs) @ 3000 Revolutions">RPM

Dimensions and Weight

Dry Weight

304.0 kg / 670.2 pounds

Ground Clearance

120 mm / 4.7 inches

Overall Length

2324 mm / 91.5 inches

Trail

150 mm / 5.9 inches

Kerb Weight

317.0 kg / 698.9 pounds

Wheelbase

1625 mm / 64.0 inches

Engine and Exhaust

Bore / Stroke

100.0 x 111.1 mm / 3.9 x 4.4 inches

Engine Capacity

1746.0 cc / 106.54 cubic inches

Compression

10.0:1

Engine Detail

Milwaukee-Eight® 107

Engine Type

V2, four-stroke

Spark Plugs

NGK CR9E, NGK CR9EIX

Starter

Electric

Transmission (Gearbox) and Final Drive

Transmission Type

Belt (final drive)

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Primary chain, 34/46 ratio

Oil Capacity

4.70 litres / 4.97 US quarts

Oil Filter

HiFloFiltro - HF171CRC

Pulley Teeth

32/66 (front/rear)

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.00 litres/100 km (20.0 km/l or 47.04 mpg)

Fuel Capacity

18.93 litres / 5.00 US gallons

Greenhouse Gases

116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Front Wheel Travel

130 mm / 5.1 inches

Fork Tube Size

43 mm / 1.7 inches

Rear Suspension

Twin shocks

Rear Wheel Travel

86 mm / 3.4 inches

Tires and Rims

Front Tire

130/70-B18

Brakes

Front Brakes

Single disc. 4-piston. ABS.

Rear Brakes

Single disc. 2-piston. ABS.

Brake Fluid

DOT 4

Instrumentation and Lighting

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

Notes, Comments and Warranty Information

Colour Options

Vivid Black, Midnight Blue, River Rock Grey Denim, Performance Orange, Tahitian Teal, Scorched Orange/Silver Flux
