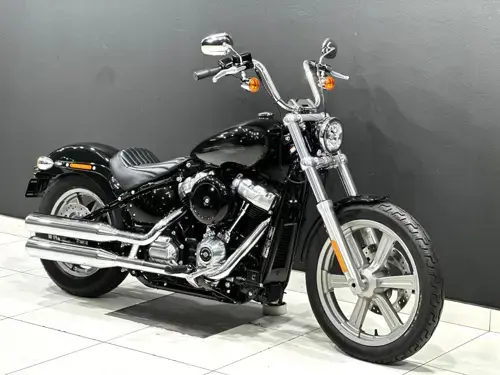

Harley-Davidson Softail Standard 2023 specifications pictures and more for the 2023 Harley-Davidson Softail Standard in South Africa brought to you by Motomedia

Harley-Davidson Softail Standard 2023 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Softail Standard

Year

2023

Performance and Speed

Torque

149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) @ 3000 Revolutions">RPM

Dimensions and Weight

Dry Weight

291.2 kg / 642.0 pounds

Ground Clearance

124 mm / 4.9 inches

Overall Length

2319 mm / 91.3 inches

Trail

157 mm / 6.2 inches

Kerb Weight

297.1 kg / 655.0 pounds

Wheelbase

1631 mm / 64.2 inches

Engine and Exhaust

Bore / Stroke

100.0 x 111.1 mm / 3.9 x 4.4 inches

Engine Capacity

1753.5 cc / 107.00 cubic inches

Compression

10.0:1

Engine Detail

Milwaukee-Eight® 107

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

2-into-2 shotgun; catalyst in muffler

Transmission (Gearbox) and Final Drive

Transmission Type

Belt (final drive)

Gearbox

5-speed

Drive line

Chain, 34/46 ratio primary

Oil Capacity

4.70 litres / 4.97 US quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Consumption

5.00 litres/100 km (20.0 km/l or 47.04 mpg)

Fuel Capacity

13.25 litres / 3.50 US gallons

Greenhouse Gases

116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring

Front Wheel Travel

142 mm / 5.6 inches

Fork Tube Size

49 mm / 1.9 inches

Rear Suspension

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

Rear Wheel Travel

103 mm / 4.1 inches

Tires and Rims

Front Tire

100/90-B19

Rims

Silver, Annihilator cast aluminum wheels. Dunlop® Harley-Davidson Series, bias blackwall tires.

Brakes

Front Brakes

Single disc. 4-piston fixed. Optional ABS.

Rear Brakes

Single disc. 2-piston floating. Optional ABS.

Instrumentation and Lighting

Instruments

2.14 inch LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

Lighting

All LED

Notes, Comments and Warranty Information

Colour Options

Vivid Black

Harley-Davidson Softail Standard 2023 specs
