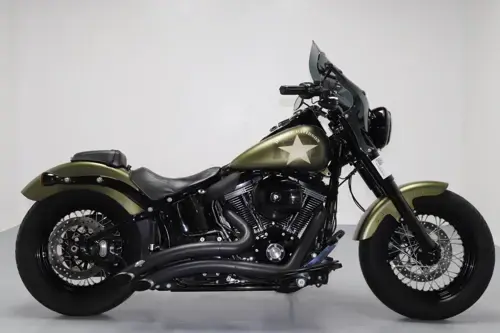

Harley-Davidson Softail Slim S 2016 specifications pictures and more for the 2016 Harley-Davidson Softail Slim S in South Africa brought to you by Motomedia

Harley-Davidson Softail Slim S 2016 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Softail Slim S

Year

2016

Performance and Speed

Power to Weight Ratio

0.3003 HP/kg

Torque

145.00 Nm (14.8 kgf-m or 107.0 ft.lbs) @ 4000 Revolutions">RPM

Dimensions and Weight

Dry Weight

308.0 kg / 679.0 pounds

Ground Clearance

115 mm / 4.5 inches

Overall Length

2,350 mm / 92.5 inches

Trail

147 mm / 5.8 inches

Kerb Weight

321.0 kg / 707.7 pounds

Wheelbase

1,636 mm / 64.4 inches

Engine and Exhaust

Bore / Stroke

101.6 x 111.3 mm / 4.0 x 4.4 inches

Compression

9.5:1

Engine Detail

Screamin´Eagle engine

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome, over/under shotgun exhaust with slash-cut mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Chain 34/46 ratio primary drive

Oil Capacity

3.30 litres / 0.22 quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Fuel Capacity

18.90 litres / 4.99 gallons

Greenhouse Gases

129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Tires and Rims

Front Tire

MT90-B16

Rear Tire

MU85-B16

Rims

Black, Laced Steel

Brakes

Front Brakes

Single disc. ABS. 4-piston

Rear Brakes

Single disc. ABS. 2-piston

Instrumentation and Lighting

Instruments

Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-spe

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

Notes, Comments and Warranty Information

Colour Options

Olive Gold Denim, Vivid Black.

Harley-Davidson Softail Slim S 2016 specs
