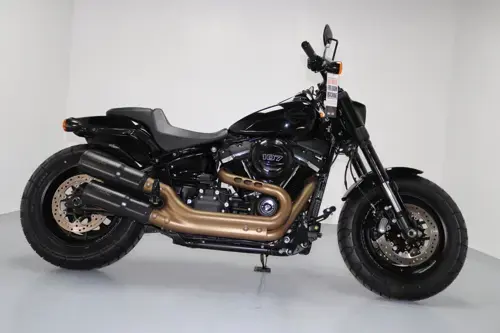

Harley-Davidson Softail Fat Bob 114 2019 specifications pictures and more for the 2019 Harley-Davidson Softail Fat Bob 114 in South Africa brought to you by Motomedia

Harley-Davidson Softail Fat Bob 114 2019 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Softail Fat Bob 114

Year

2019

Performance and Speed

Power to Weight Ratio

0.3176 HP/kg

Torque

155.0 Nm (15.8 kgf-m or 114.3 ft.lbs) @ 3000 Revolutions">RPM

Dimensions and Weight

Dry Weight

296.0 kg / 652.6 pounds

Ground Clearance

120 mm / 4.7 inches

Overall Length

2340 mm / 92.1 inches

Trail

132 mm / 5.2 inches

Kerb Weight

306.0 kg / 674.6 pounds

Wheelbase

1690 mm / 66.5 inches

Engine and Exhaust

Bore / Stroke

102.0 x 114.0 mm / 4.0 x 4.5 inches

Engine Capacity

1868.0 cc / 113.99 cubic inches

Compression

10.5:1

Engine Detail

Milwaukee-Eight® 107, optional 114 Big Twin.

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

2-into-1-into-2 dual side; catalyst in header

Transmission (Gearbox) and Final Drive

Transmission Type

Belt (final drive)

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Primary chain, 34/46 ratio

Oil Capacity

3.30 litres / 3.49 US quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.30 litres/100 km (18.9 km/l or 44.38 mpg)

Fuel Capacity

13.60 litres / 3.59 US gallons

Greenhouse Gases

123.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Tires and Rims

Front Tire

150/80-16

Rims

Denim black, Structure cast aluminum with laser etched graphics

Brakes

Front Brakes

Double disc. ABS. 4-piston.

Rear Brakes

Single disc. ABS. 2-piston.

Instrumentation and Lighting

Instruments

Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator l

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

Notes, Comments and Warranty Information

Colour Options

Vivid Black, Scorched Orange/ Black Denim, Wicked Red Denim, Rawhide Denim, Bonneville salt Denim,
