Harley-Davidson Softail Deluxe 2016 specifications pictures and more for the 2016 Harley-Davidson Softail Deluxe in South Africa brought to you by Motomedia

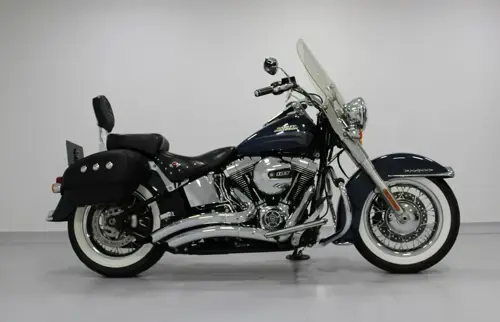

Harley-Davidson Softail Deluxe 2016 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Softail Deluxe

Year

2016

Performance and Speed

Power to Weight Ratio

0.2431 HP/kg

Torque

132.00 Nm (13.5 kgf-m or 97.4 ft.lbs) @ 3250 Revolutions">RPM

Dimensions and Weight

Dry Weight

320.0 kg / 705.5 pounds

Ground Clearance

113 mm / 4.4 inches

Overall Length

2,400 mm / 94.5 inches

Trail

147 mm / 5.8 inches

Kerb Weight

333.0 kg / 734.1 pounds

Wheelbase

1,638 mm / 64.5 inches

Engine and Exhaust

Bore / Stroke

98.4 x 111.1 mm / 3.9 x 4.4 inches

Compression

9.6:1

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome, straight over/under shotgun exhaust with dual tapered mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Primary chain, 34/46 ratio

Oil Capacity

3.30 litres / 0.22 quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Fuel Capacity

18.93 litres / 5.00 gallons

Greenhouse Gases

129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Tires and Rims

Front Tire

MT90-16

Rear Tire

MU85-B16

Rims

Steel Laced

Brakes

Front Brakes

Single disc. ABS. 4-piston

Rear Brakes

Single disc. ABS. 2-piston

Instrumentation and Lighting

Instruments

Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

Notes, Comments and Warranty Information

Colour Options

Hard Cany Gold Flame, Cosmic Blue Pearl, Black Magic, Mysterious Red Sunglo/Velocity Red Sunglo, Purple Fire/Blackberry Smoke, Superior Blue, Vivid Black, Cruched Ice Pearl/Frosted Teal Pearl.
