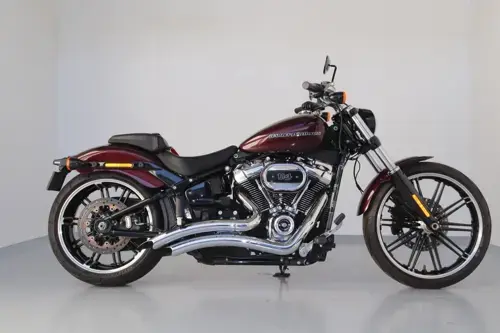

Harley-Davidson Softail Breakout 2019 specifications pictures and more for the 2019 Harley-Davidson Softail Breakout in South Africa brought to you by Motomedia

Harley-Davidson Softail Breakout 2019 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Softail Breakout

Year

2019

Performance and Speed

Power to Weight Ratio

0.2925 HP/kg

Torque

147.8 Nm (15.1 kgf-m or 109.0 ft.lbs) @ 3000 Revolutions">RPM

Dimensions and Weight

Dry Weight

294.0 kg / 648.2 pounds

Ground Clearance

115 mm / 4.5 inches

Overall Length

2370 mm / 93.3 inches

Trail

145 mm / 5.7 inches

Kerb Weight

305.0 kg / 672.4 pounds

Wheelbase

1695 mm / 66.7 inches

Engine and Exhaust

Bore / Stroke

100.0 x 111.0 mm / 3.9 x 4.4 inches

Engine Capacity

1746.0 cc / 106.54 cubic inches

Compression

10.0:1

Engine Detail

Milwaukee-Eight® 107, optional 114 Big Twin.

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

2-into-2 staggered; catalyst in muffler

Transmission (Gearbox) and Final Drive

Transmission Type

Belt (final drive)

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Chain, 34/46 ratio primary drive

Oil Capacity

4.70 litres / 4.97 US quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.00 litres/100 km (20.0 km/l or 47.04 mpg)

Fuel Capacity

13.20 litres / 3.49 US gallons

Greenhouse Gases

116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Tires and Rims

Front Tire

130/60-B21

Rims

Gloss black, Gasser II cast aluminum

Brakes

Front Brakes

Single disc. ABS. 4-piston

Rear Brakes

Single disc. ABS. 2-piston

Instrumentation and Lighting

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

Notes, Comments and Warranty Information

Colour Options

Vivid Black, , Wicked Red, Bonneville Salt Pearl, Rawhide Denim, Blue Max, Industrial Grey, Scorched Orange/Black Denim
