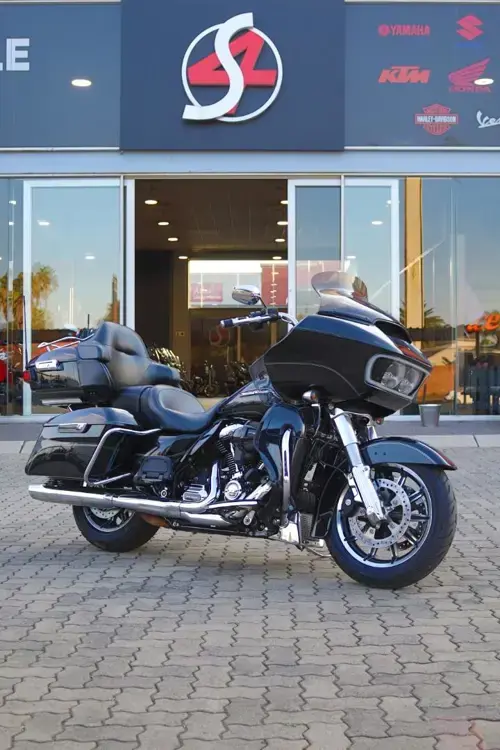

Harley-Davidson Road Glide Ultra 2016 specifications pictures and more for the 2016 Harley-Davidson Road Glide Ultra in South Africa brought to you by Motomedia

Harley-Davidson Road Glide Ultra 2016 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Road Glide Ultra

Year

2016

Performance and Speed

Power to Weight Ratio

0.2138 HP/kg

Torque

138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3250 Revolutions">RPM

Dimensions and Weight

Dry Weight

407.0 kg / 897.3 pounds

Ground Clearance

125 mm / 4.9 inches

Overall Length

2,570 mm / 101.2 inches

Trail

170 mm / 6.7 inches

Kerb Weight

425.0 kg / 937.0 pounds

Wheelbase

1,625 mm / 64.0 inches

Engine and Exhaust

Bore / Stroke

98.4 x 111.3 mm / 3.9 x 4.4 inches

Compression

9.7:1

Engine Detail

Integrated Oil-Cooler

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Chain, 34/46 ratio primary drive

Lubrication System

Dry sump

Oil Capacity

3.80 litres / 0.25 quarts

Fuel and Emission Standards

Fuel System

Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Fuel Capacity

22.71 litres / 6.00 gallons

Greenhouse Gases

129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Carrying Capacity

Saddle bags. Top Box.

Tires and Rims

Front Tire

130/70-BW18

Rear Tire

180/65-BW16

Rims

Impeller Cast Aluminum

Brakes

Front Brakes

Double disc. ABS. 4-piston

Rear Brakes

Single disc. ABS. 4-piston

Instrumentation and Lighting

Instruments

Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6

Lighting

High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

Notes, Comments and Warranty Information

Comments

Small windshield. Cruse control. Alarm.

Colour Options

Black Denim, Mysterious Red Sunglo/Velocity Red Sunglo, Billet Silver/Vivid Black, Superior Blue, Cosmic Blue Pearl, Purple Fire/Blackberry Smoke.

Harley-Davidson Road Glide Ultra 2016 specs
