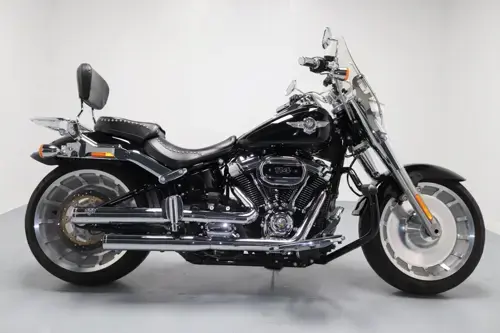

Harley-Davidson Fat Boy 114 2021 specifications pictures and more for the 2021 Harley-Davidson Fat Boy 114 in South Africa brought to you by Motomedia

Harley-Davidson Fat Boy 114 2021 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Fat Boy 114

Year

2021

Performance and Speed

Power to Weight Ratio

0.3286 HP/kg

Torque

161.4 Nm (16.5 kgf-m or 119.0 ft.lbs) @ 3000 Revolutions">RPM

Dimensions and Weight

Dry Weight

304.4 kg / 671.0 pounds

Ground Clearance

114 mm / 4.5 inches

Overall Length

2385 mm / 93.9 inches

Trail

104 mm / 4.1 inches

Kerb Weight

317.1 kg / 699.0 pounds

Wheelbase

1666 mm / 65.6 inches

Engine and Exhaust

Bore / Stroke

102.0 x 114.0 mm / 4.0 x 4.5 inches

Engine Capacity

1868.0 cc / 113.99 cubic inches

Compression

10.5:1

Engine Detail

Milwaukee-Eight® 114

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

2-into-1-into-2 dual side; catalyst in header

Transmission (Gearbox) and Final Drive

Transmission Type

Belt (final drive)

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Primary chain, 34/46 ratio

Oil Capacity

4.70 litres / 4.97 US quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.00 litres/100 km (20.0 km/l or 47.04 mpg)

Fuel Capacity

18.93 litres / 5.00 US gallons

Greenhouse Gases

116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Tires and Rims

Front Tire

160/60-R18

Rims

Machined, Lakester cast aluminum

Brakes

Front Brakes

Double disc. ABS. 4-piston.

Rear Brakes

Single disc. ABS. 2-piston.

Instrumentation and Lighting

Instruments

5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication

Lighting

High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

Notes, Comments and Warranty Information

Colour Options

Vivid Black, Deadwood Green, Black Jack Metallic, Gauntlet Grey Metallic/Vivid Black

Harley-Davidson Fat Boy 114 2021 specs
