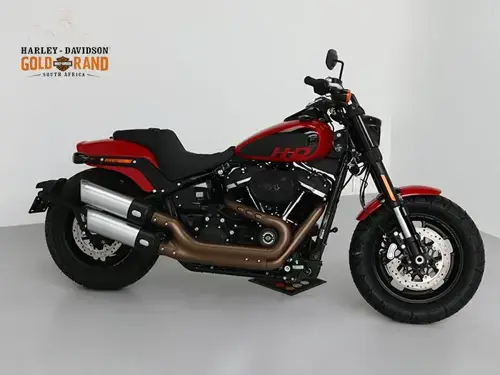

Harley-Davidson Fat Bob 114 2023 specifications pictures and more for the 2023 Harley-Davidson Fat Bob 114 in South Africa brought to you by Motomedia

Harley-Davidson Fat Bob 114 2023 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Fat Bob 114

Year

2023

Performance and Speed

Power to Weight Ratio

0.3088 HP/kg

Torque

161.4 Nm (16.5 kgf-m or 119.0 ft.lbs) @ 3000 Revolutions">RPM

Dimensions and Weight

Dry Weight

304.4 kg / 671.0 pounds

Ground Clearance

114 mm / 4.5 inches

Overall Length

2370 mm / 93.3 inches

Trail

104 mm / 4.1 inches

Kerb Weight

317.1 kg / 699.0 pounds

Wheelbase

1666 mm / 65.6 inches

Engine and Exhaust

Bore / Stroke

102.0 x 114.0 mm / 4.0 x 4.5 inches

Engine Capacity

1868.0 cc / 113.99 cubic inches

Compression

10.5:1

Engine Detail

Milwaukee-Eight® 114

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

2-into-2 staggered, catalyst in muffler

Transmission (Gearbox) and Final Drive

Transmission Type

Belt (final drive)

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

34/46 ratio primary

Oil Capacity

4.70 litres / 4.97 US quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.00 litres/100 km (20.0 km/l or 47.04 mpg)

Fuel Capacity

18.93 litres / 5.00 US gallons

Greenhouse Gases

116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; ´beer can´ covers

Rear Suspension

Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment

Tires and Rims

Front Tire

160/60-R18

Rims

Machined, Lakester cast aluminum wheels. Michelin® Scorcher® ´11´ tires.

Brakes

Front Brakes

Double disc. Optional ABS. 4-piston.

Rear Brakes

Single disc. Optional ABS. 2-piston.

Instrumentation and Lighting

Instruments

5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication

Lighting

All LED

Notes, Comments and Warranty Information

Comments

Security system.

Colour Options

Vivid Black, Bright Billiard Blue, Gray Haze/Silver Fortune

Harley-Davidson Fat Bob 114 2023 specs
