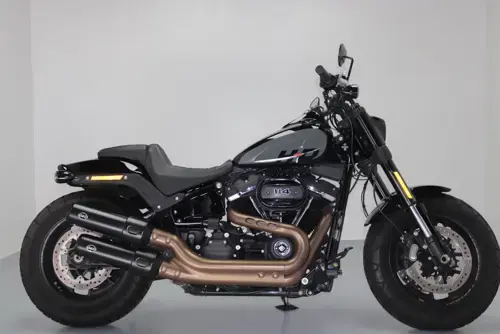

Harley-Davidson Fat Bob 114 2022 specifications pictures and more for the 2022 Harley-Davidson Fat Bob 114 in South Africa brought to you by Motomedia

Harley-Davidson Fat Bob 114 2022 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Fat Bob 114

Year

2022

Performance and Speed

Power to Weight Ratio

0.3174 HP/kg

Torque

160.0 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3500 Revolutions">RPM

Dimensions and Weight

Dry Weight

296.2 kg / 653.0 pounds

Ground Clearance

120 mm / 4.7 inches

Overall Length

2340 mm / 92.1 inches

Trail

132 mm / 5.2 inches

Kerb Weight

306.2 kg / 675.0 pounds

Wheelbase

1615 mm / 63.6 inches

Engine and Exhaust

Bore / Stroke

102.0 x 114.0 mm / 4.0 x 4.5 inches

Engine Capacity

1868.0 cc / 113.99 cubic inches

Compression

10.5:1

Engine Detail

Milwaukee-Eight® 114

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

2-into-1-into-2 dual side; catalyst in header

Transmission (Gearbox) and Final Drive

Transmission Type

Belt (final drive)

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Oil Capacity

4.70 litres / 4.97 US quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.00 litres/100 km (20.0 km/l or 47.04 mpg)

Fuel Capacity

13.60 litres / 3.59 US gallons

Greenhouse Gases

116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring

Fork Tube Size

43 mm / 1.7 inches

Rear Suspension

Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment

Tires and Rims

Front Tire

150/80-16

Rims

Denim black, Structure cast aluminum with laser etched graphics wheels. Dunlop® Harley-Davidson Series, bias blackwall tires.

Brakes

Front Brakes

Double disc. ABS. 4-piston.

Rear Brakes

Single disc. ABS. 2-piston.

Instrumentation and Lighting

Instruments

4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

Lighting

All LED

Notes, Comments and Warranty Information

Colour Options

Vivid Black, White Sand Pearl

Harley-Davidson Fat Bob 114 2022 specs
