Harley-Davidson Dyna Switchback 2016 specifications pictures and more for the 2016 Harley-Davidson Dyna Switchback in South Africa brought to you by Motomedia

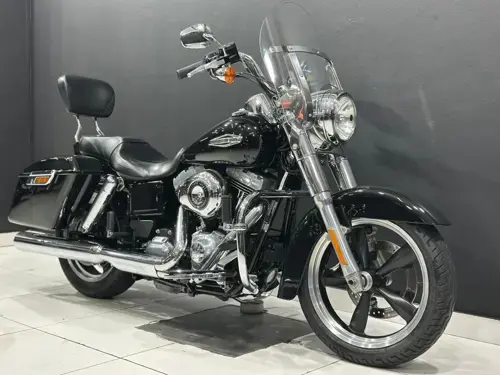

Harley-Davidson Dyna Switchback 2016 specs

Motomedia / Motorcycle makes / 2016 Harley-Davidson specs || Harley-Davidson Dyna Switchback 2016 specs
Latest motor bike specifications and pictures for the 2016 Harley-Davidson Dyna Switchback.



Harley-Davidson Dyna Switchback 2016 motorcycle info

Main Detail

Make
Harley-Davidson
Model
Dyna Switchback
Year
2016
Category
Touring

Performance and Speed

Power to Weight Ratio
0.2411 HP/kg
Torque
126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 3500 Revolutions">RPM

Dimensions and Weight

Dry Weight
315.7 kg / 696.0 pounds
Ground Clearance
110 mm / 4.3 inches
Overall Length
2,360 mm / 92.9 inches
Trail
148 mm / 5.8 inches
Kerb Weight
325.7 kg / 718.0 pounds
Wheelbase
1,595 mm / 62.8 inches

Engine and Exhaust

Bore / Stroke
98.4 x 111.3 mm / 3.9 x 4.4 inches
Compression
9.6:1
Engine Type
V2, four-stroke
Starter
Electric
Exhaust system
2-into-1 chrome exhaust with straight-cut muffler

Transmission (Gearbox) and Final Drive

Transmission Type
Belt
Gearbox
6-speed
Clutch
Multi-plate with diaphragm spring in oil bath
Drive line
Primary chain, 34/46 ratio
Oil Capacity
2.80 litres / 0.18 quarts

Fuel and Emission Standards

Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Fuel Consumption
5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity
17.79 litres / 4.70 gallons
Greenhouse Gases
129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension
Telescopic fork
Rear Suspension
Twin shocks
Carrying Capacity
Saddle bags

Tires and Rims

Front Tire
130/70-B18
Rear Tire
160/70-B17
Rims
Black, 5-Spoke Cast Aluminum

Brakes

Front Brakes
Double disc. 4-piston fixed. ABS.
Rear Brakes
Single disc. 2-piston torque-free floating.

Instrumentation and Lighting

Instruments
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat
Lighting
High beam, neutral, low oil pressure, engine diagnostics, turn signals, low fuel warning, ABS (optional), low battery, body controller diagnostics

Notes, Comments and Warranty Information

Comments
Windscreen
Colour Options
Deep Jade Pearl, Velocity Red Sunglo, Vivid Black
