Harley-Davidson Dyna Street Bob 2016 specifications pictures and more for the 2016 Harley-Davidson Dyna Street Bob in South Africa brought to you by Motomedia

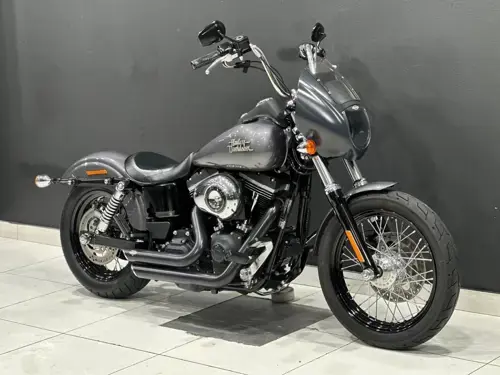

Harley-Davidson Dyna Street Bob 2016 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Dyna Street Bob

Year

2016

Performance and Speed

Power to Weight Ratio

0.2663 HP/kg

Torque

130.00 Nm (13.3 kgf-m or 95.9 ft.lbs) @ 3000 Revolutions">RPM

Dimensions and Weight

Dry Weight

291.0 kg / 641.5 pounds

Ground Clearance

119 mm / 4.7 inches

Overall Length

2,395 mm / 94.3 inches

Trail

119 mm / 4.7 inches

Kerb Weight

304.8 kg / 672.0 pounds

Wheelbase

1,631 mm / 64.2 inches

Engine and Exhaust

Bore / Stroke

95.3 x 111.3 mm / 3.8 x 4.4 inches

Compression

9.2:1

Engine Detail

Air-cooled, Twin Cam 96?

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome, staggered, straight-cut shorty exhaust with dual mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Primary chain, 57/38 ratio

Lubrication System

Dry sump

Oil Capacity

2.80 litres / 0.18 quarts

Fuel and Emission Standards

Fuel System

Injection. ESPFI

Fuel Consumption

5.47 litres/100 km (18.3 km/l or 43.00 mpg)

Fuel Capacity

17.79 litres / 4.70 gallons

Greenhouse Gases

126.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Tires and Rims

Front Tire

100/90-H19

Rear Tire

160/70-V17

Rims

Black, Laced Steel

Brakes

Front Brakes

Single disc. 4-piston fixed

Rear Brakes

Single disc. 2-piston torque-free floating

Instrumentation and Lighting

Instruments

Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat

Lighting

High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings

Notes, Comments and Warranty Information

Colour Options

Olive Gold, Hard Candy Cancun Blue Flake, Black Denim, Vivid Black, Billet Silver/Vivid Black, Crushed Ice Pearl, Velocity Red Sunglo, Charcoal Pearl, HD1 Custom Colors

Harley-Davidson Dyna Street Bob 2016 specs
