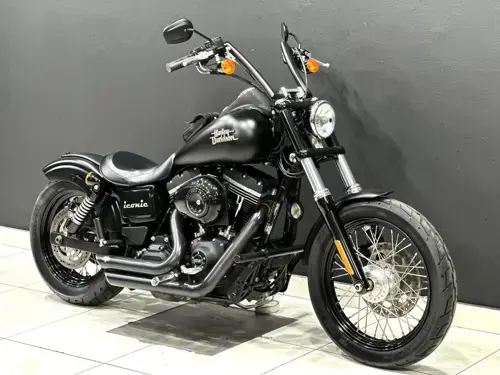

Harley-Davidson Dyna Street Bob 2014 specifications pictures and more for the 2014 Harley-Davidson Dyna Street Bob in South Africa brought to you by Motomedia

Harley-Davidson Dyna Street Bob 2014 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Dyna Street Bob

Year

2014

Performance and Speed

Power to Weight Ratio

0.0383 HP/kg

Top Speed

45.0 km/h / 28.0 mph

Torque

124.75 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000

Dimensions and Weight

Dry Weight

289.9 kg / 639.0 pounds

Ground Clearance

125 mm / 4.9 inches

Overall Height

1,005 mm / 39.6 inches

Overall Length

2,357 mm / 92.8 inches

Overall Width

625 mm / 24.6 inches

Trail

119 mm / 4.7 inches

Kerb Weight

304.8 kg / 672.0 pounds

Wheelbase

1,631 mm / 64.2 inches

Engine and Exhaust

Bore / Stroke

95.3 x 111.3 mm / 3.8 x 4.4 inches

Engine Capacity

1573.25 cc / 96.00 cubic inches

Compression

10.0:1

Engine Detail

Air-cooled, Twin Cam 96?

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome, staggered, straight-cut shorty exhaust with dual mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Primary chain, 57/38 ratio

Lubrication System

Dry sump

Oil Capacity

2.80 litres / 0.18 quarts

Fuel and Emission Standards

Fuel System

Injection. ESPFI

Fuel Consumption

5.47 litres/100 km (18.3 km/l or 43.00 mpg)

Fuel Capacity

17.79 litres / 4.70 gallons

Emission Details

Zero emission

Greenhouse Gases

126.9 CO

Suspension

Front Suspension

Dual Hydraulic Shock Absorber

Rear Suspension

Single Hydraulic Shock Absorber

Tires and Rims

Front Tire

80/100-10

Front Tire Dimensions

100/90-H19

Rear Tire

80/100-10

Rear Tire Dimensions

160/70-V17

Rims

Black, Laced Steel

Brakes

Front Brakes

Single disc. Dual-piston

Rear Brakes

Single disc. Single-piston

Instrumentation and Lighting

Instruments

Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat

Lighting

High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings

Notes, Comments and Warranty Information

Comments

North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

Colour Options

Hard Candy Chrome Flake, Hard Candy Volcanic Orange Flake, Amber Whiskey/ Brilliant Silver, Sand Cammo Denim, Morocco Gold Pearl, Blackened Cayenne Sunglo, Mysterious Red Sunglo, Amber Whiskey, Brilliant Silver Pearl, H-D1 Factory Customizatio

Harley-Davidson Dyna Street Bob 2014 specs
