Harley-Davidson Dyna Fat Bob 2016 specifications pictures and more for the 2016 Harley-Davidson Dyna Fat Bob in South Africa brought to you by Motomedia

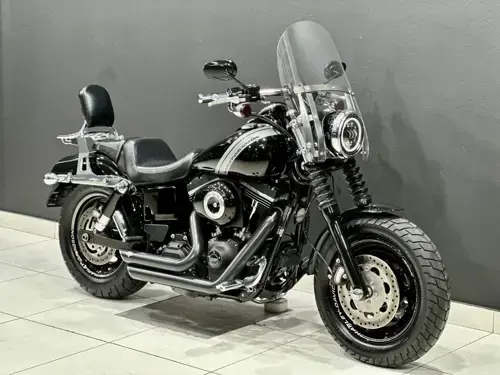

Harley-Davidson Dyna Fat Bob 2016 motorcycle info

Main Detail

Make

Harley-Davidson

Model

Dyna Fat Bob

Year

2016

Performance and Speed

Power to Weight Ratio

0.2578 HP/kg

Torque

132.00 Nm (13.5 kgf-m or 97.4 ft.lbs) @ 3250 Revolutions">RPM

Dimensions and Weight

Dry Weight

306.0 kg / 674.6 pounds

Ground Clearance

125 mm / 4.9 inches

Overall Length

2,400 mm / 94.5 inches

Trail

125 mm / 4.9 inches

Kerb Weight

321.0 kg / 707.7 pounds

Wheelbase

1,621 mm / 63.8 inches

Engine and Exhaust

Bore / Stroke

98.4 x 111.3 mm / 3.9 x 4.4 inches

Compression

9.6:1

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Primary chain, 34/46 ratio

Oil Capacity

2.80 litres / 0.18 quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection (ESPFI)

Fuel Control

Overhead Cams (OHC)

Fuel Consumption

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Fuel Capacity

18.93 litres / 5.00 gallons

Greenhouse Gases

129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Tires and Rims

Front Tire

130/90-B16

Rear Tire

180/70-B16

Rims

Gloss Black Cast Aluminum Wheel w/ Laser Etched Graphics

Brakes

Front Brakes

Double disc. 4-piston fixed. Optional ABS.

Rear Brakes

Single disc. 2-piston torque-free floating. Optional ABS.

Instrumentation and Lighting

Instruments

Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat

Lighting

High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings

Notes, Comments and Warranty Information

Colour Options

Black Denim, Velocity Red Sunglo, Vivid Black, Olive Gold
