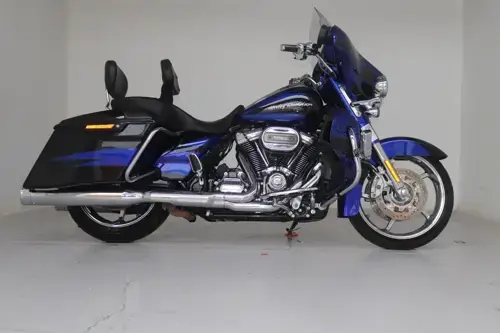

Harley-Davidson CVO Street Glide 2017 specifications pictures and more for the 2017 Harley-Davidson CVO Street Glide in South Africa brought to you by Motomedia

Harley-Davidson CVO Street Glide 2017 motorcycle info

Main Detail

Make

Harley-Davidson

Model

CVO Street Glide

Year

2017

Performance and Speed

Power to Weight Ratio

0.2684 HP/kg

Torque

165.00 Nm (16.8 kgf-m or 121.7 ft.lbs) @ 3250 Revolutions">RPM

Dimensions and Weight

Dry Weight

380.0 kg / 837.8 pounds

Ground Clearance

125 mm / 4.9 inches

Overall Length

2,435 mm / 95.9 inches

Trail

170 mm / 6.7 inches

Kerb Weight

398.0 kg / 877.4 pounds

Wheelbase

1,625 mm / 64.0 inches

Engine and Exhaust

Bore / Stroke

102.0 x 114.3 mm / 4.0 x 4.5 inches

Compression

10.5:1

Engine Detail

Twin-Cooled Milwaukee-Eight 114

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome dual exhaust with 4 inch touring mufflers and touring muffler shields

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Chain, 34/46 ratio primary drive

Lubrication System

Dry sump

Oil Capacity

4.70 litres / 0.31 quarts

Fuel and Emission Standards

Fuel System

Injection. ESPFI

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.50 litres/100 km (18.2 km/l or 42.77 mpg)

Fuel Capacity

22.71 litres / 6.00 gallons

Greenhouse Gases

127.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic fork

Rear Suspension

Twin shocks

Carrying Capacity

Saddle bags

Tires and Rims

Front Tire

130/70-B19

Rear Tire

180/55-B18

Rims

Mirror Chrome Aggressor Custom Wheel

Brakes

Front Brakes

Double disc. ABS. 4-piston

Rear Brakes

Single disc. ABS. 4-piston

Instrumentation and Lighting

Instruments

Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators, including new reverse indicator light

Lighting

High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

Notes, Comments and Warranty Information

Comments

Windshield. Cruise control. Alarm. Infotainment.

Colour Options

Candy Cobalt/Indigo Ink, Sunburst Orange/Starfire Black, Darl Slate Candy/Arctic Black, Starfire Black/Atomic Red Black Licorice/Midnight Cobolt Flames, Atomic Red/Candy Apple Flames, White Amethyst/Black Flames, Carbon Crys

Harley-Davidson CVO Street Glide 2017 specs
