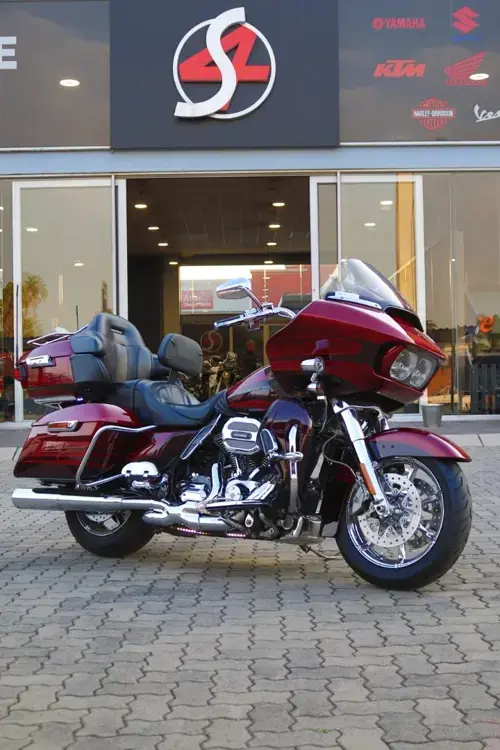

Harley-Davidson CVO Road Glide Ultra 2015 specifications pictures and more for the 2015 Harley-Davidson CVO Road Glide Ultra in South Africa brought to you by Motomedia

Harley-Davidson CVO Road Glide Ultra 2015 motorcycle info

Main Detail

Make

Harley-Davidson

Model

CVO Road Glide Ultra

Year

2015

Performance and Speed

Power to Weight Ratio

0.2617 HP/kg

Torque

156.00 Nm (15.9 kgf-m or 115.1 ft.lbs) @ 3250 Revolutions">RPM

Dimensions and Weight

Dry Weight

369.0 kg / 813.5 pounds

Ground Clearance

140 mm / 5.5 inches

Overall Length

2,430 mm / 95.7 inches

Trail

170 mm / 6.7 inches

Kerb Weight

385.0 kg / 848.8 pounds

Wheelbase

1,625 mm / 64.0 inches

Engine and Exhaust

Bore / Stroke

101.6 x 111.1 mm / 4.0 x 4.4 inches

Compression

9.2:1

Engine Detail

Twin-Cooled? Twin Cam 110?

Engine Type

V2, four-stroke

Starter

Electric

Exhaust system

Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Multi-plate with diaphragm spring in oil bath

Drive line

Chain, 34/46 ratio primary drive

Lubrication System

Dry sump

Oil Capacity

3.80 litres / 0.25 quarts

Fuel and Emission Standards

Fuel System

Injection. Electronic Sequential Port Fuel Injection (ESPFI)

Fuel Consumption

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Fuel Capacity

22.71 litres / 6.00 gallons

Greenhouse Gases

129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Carrying Capacity

Saddle bags. Top box.

Tires and Rims

Front Tire

130/80-BW17

Rear Tire

180/65-BW16

Rims

Mirror Chrome Slicer Custom Wheel

Brakes

Front Brakes

Double disc. ABS. 4-piston

Rear Brakes

Single disc. ABS. 2-piston

Instrumentation and Lighting

Instruments

Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6

Lighting

High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

Notes, Comments and Warranty Information

Comments

Small windshield. Cruse control. Alarm.

Colour Options

Abyss Blue/Crushed Sapphire, Burgundy Blaze/Typhon Maroon, Carbon Dust/Autumn Sunset
