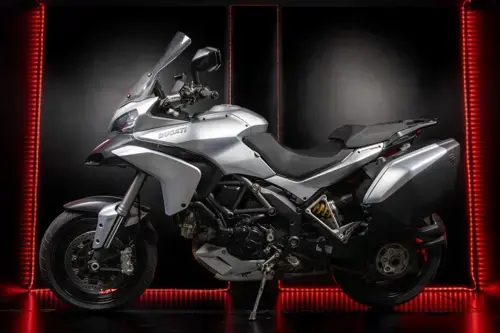

Ducati Multistrada 1200 2014 motorcycle info

Main Detail

Make

Ducati

Model

Multistrada 1200

Year

2014

Performance and Speed

Power to Weight Ratio

0.7546 HP/kg

Torque

124.50 Nm (12.7 kgf-m or 91.8 ft.lbs) @ 7500

Dimensions and Weight

Dry Weight

196.0 kg / 432.1 pounds

Overall Height

1,408 mm / 55.4 inches

Overall Length

2,195 mm / 86.4 inches

Overall Width

793 mm / 31.2 inches

Trail

110 mm / 4.3 inches

Kerb Weight

224.0 kg / 493.8 pounds

Wheelbase

1,530 mm / 60.2 inches

Engine and Exhaust

Bore / Stroke

106.0 x 67.9 mm / 4.2 x 2.7 inches

Engine Capacity

1198.40 cc / 73.13 cubic inches

Compression

11.5:1

Engine Type

V2, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run

Drive line

Chain 5.30

Lubrication System

Dry sump

Fuel and Emission Standards

Fuel System

Injection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies

Fuel Control

Desmodromic valve control

Fuel Capacity

20.00 litres / 5.28 gallons

Reserve Fuel Capacity

2.50 litres / 0.66 gallons

Emission Details

Euro 3

Suspension

Front Suspension

Marzocchi 50mm fully adjustable usd forks

Front Wheel Travel

150 mm / 5.9 inches

Rear Suspension

Fully adjustable Sachs unit. Remote spring preload adjustment. Aluminium single-sided swingarm

Rear Wheel Travel

150 mm / 5.9 inches

Tires and Rims

Front Tire

90/90-21

Front Tire Dimensions

120/70-17

Rear Tire

130/90-17

Rear Tire Dimensions

190/55-17

Brakes

Front Brakes

Double disc. Floating discs. Four-piston calipers. Radially mounted.

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc. Two-piston calipers.

Rear Brake Diameter

245 mm / 9.6 inches

Instrumentation and Lighting

Lighting

Oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control

Notes, Comments and Warranty Information

Comments

Made in Spain.

Factory Warranty

2 years unlimited mileage

Colour Options

Red

Ducati Multistrada 1200 2014 specs
