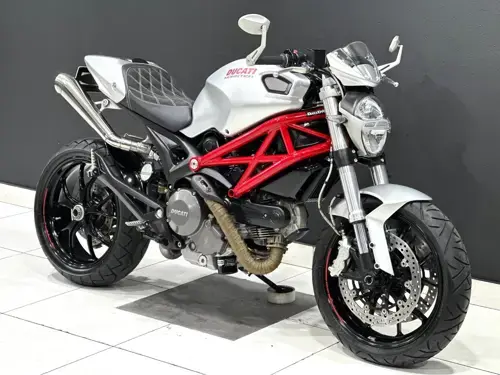

Ducati Monster 796 2014 specifications pictures and more for the 2014 Ducati Monster 796 in South Africa brought to you by Motomedia

Ducati Monster 796 2014 motorcycle info

Main Detail

Make

Ducati

Model

Monster 796

Year

2014

Performance and Speed

Power to Weight Ratio

0.5210 HP/kg

Torque

78.00 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 6250

Dimensions and Weight

Dry Weight

167.0 kg / 368.2 pounds

Overall Height

1,079 mm / 42.5 inches

Overall Length

2,114 mm / 83.2 inches

Overall Width

784 mm / 30.9 inches

Trail

87 mm / 3.4 inches

Kerb Weight

187.0 kg / 412.3 pounds

Wheelbase

1,450 mm / 57.1 inches

Engine and Exhaust

Bore / Stroke

88.0 x 66.0 mm / 3.5 x 2.6 inches

Engine Capacity

803.00 cc / 49.00 cubic inches

Compression

11.0:1

Engine Type

V2, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

Lightweight 2-1-2 system with catalytic converter with twin lambda probes

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

APTC wet multiplate with hydraulic control

Drive line

Chain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears; Ratio 1.85.

Lubrication System

Dry sump

Fuel and Emission Standards

Fuel System

Injection. 45mm throttle body 45 mm with stepper motor

Fuel Control

Desmodromic valve control

Fuel Capacity

15.00 litres / 3.96 gallons

Reserve Fuel Capacity

2.50 litres / 0.66 gallons

Emission Details

Euro 3

Suspension

Front Suspension

43mm upside-down forks

Front Wheel Travel

150 mm / 5.9 inches

Rear Suspension

Progressive linkage with preload and rebound Sachs adjustable monoshock

Rear Wheel Travel

150 mm / 5.9 inches

Tires and Rims

Front Tire

90/90-21

Front Tire Dimensions

120/70-ZR17

Rear Tire

130/90-17

Rear Tire Dimensions

180/55-ZR17

Brakes

Front Brakes

Double disc. Four-piston calipers.

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc. Two-piston calipers.

Rear Brake Diameter

245 mm / 9.6 inches

Instrumentation and Lighting

Instruments

Digital unit displaying Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system.

Notes, Comments and Warranty Information

Comments

Made in Spain.

Factory Warranty

2 years unlimited mileage

Colour Options

Red, white

Ducati Monster 796 2014 specs
