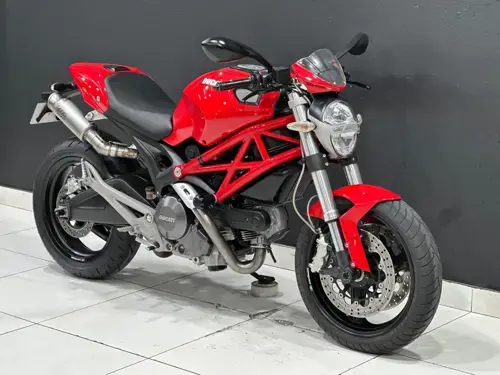

Ducati Monster 696 2009 specifications pictures and more for the 2009 Ducati Monster 696 in South Africa brought to you by Motomedia

Ducati Monster 696 2009 motorcycle info

Main Detail

Make

Ducati

Model

Monster 696

Year

2009

Performance and Speed

Power to Weight Ratio

0.4898 HP/kg

Torque

50.60 Nm (5.2 kgf-m or 37.3 ft.lbs)

Dimensions and Weight

Dry Weight

161.0 kg / 354.9 pounds

Wheelbase

1,450 mm / 57.1 inches

Engine and Exhaust

Bore / Stroke

88.0 x 57.2 mm / 3.5 x 2.3 inches

Engine Capacity

696.00 cc / 42.47 cubic inches

Compression

10.7:1

Engine Type

V2, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

2 aluminium mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

APTC wet multiplate with hydraulic control

Fuel and Emission Standards

Fuel System

Injection. Siemens electronic fuel injection, 45mm throttle body

Fuel Control

Desmodromic valve control

Fuel Capacity

15.00 litres / 3.96 gallons

Suspension

Front Suspension

Showa 43mm upside-down forks

Front Suspension Travel

120 mm / 4.7 inches

Front Wheel Travel

120 mm / 4.7 inches

Rear Suspension

Progressive linkage with preload and rebound Sachs adjustable monoshock

Rear Wheel Travel

148 mm / 5.8 inches

Tires and Rims

Front Tire Dimensions

120/60-ZR17

Rear Tire Dimensions

160/60-ZR17

Brakes

Front Brakes

Double disc

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc

Rear Brake Diameter

245 mm / 9.6 inches

Notes, Comments and Warranty Information

Colour Options

Red (red/black), Matte Black (black/black), White (black/black)
