Ducati Diavel Dark 2014 specifications pictures and more for the 2014 Ducati Diavel Dark in South Africa brought to you by Motomedia

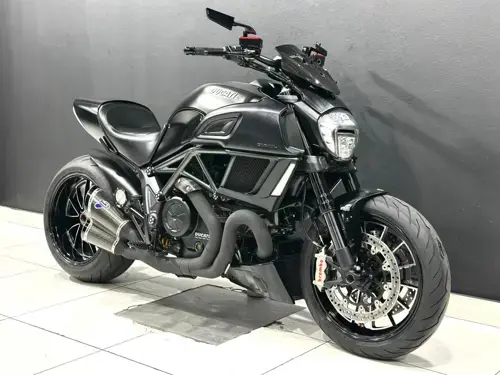

Ducati Diavel Dark 2014 motorcycle info

Main Detail

Make

Ducati

Model

Diavel Dark

Year

2014

Performance and Speed

Power to Weight Ratio

0.7714 HP/kg

Torque

127.50 Nm (13.0 kgf-m or 94.0 ft.lbs) @ 8000

Dimensions and Weight

Dry Weight

210.0 kg / 463.0 pounds

Overall Height

1,192 mm / 46.9 inches

Overall Length

2,235 mm / 88.0 inches

Overall Width

860 mm / 33.9 inches

Trail

130 mm / 5.1 inches

Kerb Weight

239.0 kg / 526.9 pounds

Wheelbase

1,590 mm / 62.6 inches

Engine and Exhaust

Bore / Stroke

106.0 x 67.9 mm / 4.2 x 2.7 inches

Engine Capacity

1198.40 cc / 73.13 cubic inches

Compression

11.5:1

Engine Detail

Testastretta 11° L-Twin

Engine Type

V2, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.

Drive line

Front sprocket 15; Rear sprocket 43. Primary drive: Straight cut gears, ratio 1.84.

Lubrication System

Dry sump

Fuel and Emission Standards

Fuel System

Injection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW

Fuel Control

Desmodromic valve control

Fuel Capacity

17.00 litres / 4.49 gallons

Reserve Fuel Capacity

2.50 litres / 0.66 gallons

Emission Details

Euro 3

Suspension

Front Suspension

Marzocchi DLC coated 50mm fully adjustable usd forks

Front Wheel Travel

150 mm / 5.9 inches

Rear Suspension

Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm

Rear Wheel Travel

150 mm / 5.9 inches

Tires and Rims

Front Tire

90/90-21

Front Tire Dimensions

120/70-ZR17

Rear Tire

130/90-17

Rear Tire Dimensions

240/45-ZR17

Brakes

Front Brakes

Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted.

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc. ABS. Floating disc. Two-piston calipers.

Rear Brake Diameter

265 mm / 10.4 inches

Instrumentation and Lighting

Instruments

Handlebar mounted instrumentation with LCD display speed, rpm, time, coolant temp.

Notes, Comments and Warranty Information

Comments

Made in Spain.

Factory Warranty

2 years unlimited mileage

Colour Options

Dark stealth
