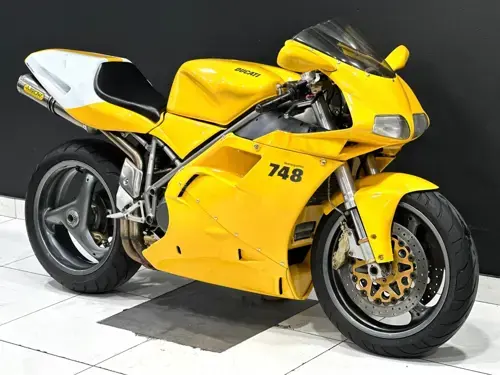

Ducati 748 2002 specifications pictures and more for the 2002 Ducati 748 in South Africa brought to you by Motomedia

Ducati 748 2002 motorcycle info

Main Detail

Make

Ducati

Model

748

Year

2002

Performance and Speed

Power to Weight Ratio

0.4949 HP/kg

Torque

73.00

Dimensions and Weight

Dry Weight

196.0 kg / 432.1 pounds

Overall Height

1,080 mm / 42.5 inches

Overall Length

2,030 mm / 79.9 inches

Wheelbase

1,410 mm / 55.5 inches

Engine and Exhaust

Bore / Stroke

88.0 x 65.5 mm / 3.5 x 2.6 inches

Engine Capacity

748.00 cc / 45.64 cubic inches

Compression

11.5:1

Engine Type

Starter

Electric

2 / 4 Stroke

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Fuel and Emission Standards

Fuel System

Injection

Fuel Capacity

17.00 litres / 4.49 gallons

Reserve Fuel Capacity

4.00 litres / 1.06 gallons

Suspension

Front Suspension Travel

127 mm / 5.0 inches

Front Wheel Travel

127 mm / 5.0 inches

Rear Wheel Travel

130 mm / 5.1 inches

Tires and Rims

Front Tire Dimensions

120/60-ZR17

Rear Tire Dimensions

180/55-ZR17

Brakes

Front Brakes

Dual disc

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc

Rear Brake Diameter

220 mm / 8.7 inches

Ducati 748 2002 specs
