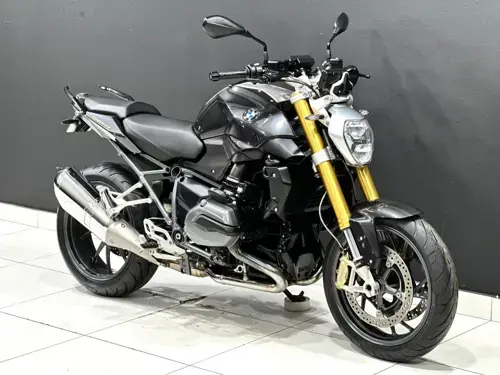

BMW R1200R 2016 specifications pictures and more for the 2016 BMW R1200R in South Africa brought to you by Motomedia

BMW R1200R 2016 motorcycle info

Main Detail

Make

BMW

Model

R1200R

Year

2016

Performance and Speed

Torque

125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 6500 Revolutions">RPM

Dimensions and Weight

Overall Height

1,300 mm / 51.2 inches

Overall Length

2,165 mm / 85.2 inches

Overall Width

906 mm / 35.7 inches

Trail

126 mm / 4.9 inches

Kerb Weight

231.0 kg / 509.3 pounds

Wheelbase

1,515 mm / 59.6 inches

Engine and Exhaust

Bore / Stroke

101.0 x 73.0 mm / 4.0 x 2.9 inches

Compression

12.0:1

Engine Type

Two cylinder boxer, four-stroke

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Shaft drive (cardan)

Gearbox

6-speed

Clutch

Single dry plate clutch, hydraulically operated

Lubrication System

Dry sump

Fuel and Emission Standards

Fuel System

Injection. Electronic intake pipe injection/BMS-K+ digital enfinemanagement with overrun fuel cut-off, twin spark ignition

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

3.90 litres/100 km (25.6 km/l or 60.31 mpg)

Fuel Capacity

18.00 litres / 4.76 gallons

Reserve Fuel Capacity

3.00 litres / 0.79 gallons

Emission Details

Closed-loop 3-way catalytic converter, emission standard EU-3

Greenhouse Gases

90.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Telescopic Upside-Down fork; stanchion diameter 45 mm

Front Wheel Travel

140 mm / 5.5 inches

Rear Suspension

Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel

Rear Wheel Travel

140 mm / 5.5 inches

Tires and Rims

Front Tire

120/70-ZR17

Rear Tire

180/55-ZR17

Rims

Cast aluminium

Brakes

Front Brakes

Double disc. ABS. Floating discs. Four-piston calipers.

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc. ABS. Floating disc. Two-piston calipers.

Rear Brake Diameter

265 mm / 10.4 inches

Notes, Comments and Warranty Information

Comments

Switchable ABS.

Colour Options

Cordoba Blue, Thunder Metallic Grey, Light White

BMW R1200R 2016 specs
